How to Calculate Solar Power Plant Capacity Factor

One of the most important metrics for measuring the performance of a solar power plant is the Capacity Factor (CF) and Capacity Utilization Factor (CUF). These two indicators help developers, investors, and operators to understand how efficiently a solar photovoltaic (PV) plant converts sunlight into usable electricity over time.

In the renewable energy sector, accurate performance measurement is a technical necessity. It has a direct impact on project financing, return on investment, and long-term sustainability. A solar power plant with a well-calculated and optimized CUF can provide predictable returns and stable electricity generation. It makes both investors and utility operators more attractive.

In this blog post, we will explore:

• The difference between the Capacity Factor and the Capacity Utilization Factor
• The formula for calculating CUF with examples
• Key factors that affect CUF in solar power plants
• Average CUF ranges across regions
• Strategies to improve CUF and boost plant efficiency

The role of CUF in financial modeling for solar projects. By the end, you will have a comprehensive understanding of how CUF is calculated and why it’s crucial for evaluating solar power plant performance.

What is the Capacity Factor

The Capacity Factor (CF) shows how efficiently a solar power plant produces electricity compared to its full potential. It measures the actual energy generated over a period against the maximum possible energy the plant could make if it worked at full power all the time. A higher CF means the system performs well and uses sunlight effectively. This value helps plant owners understand how well their system is running and where improvements can be made.

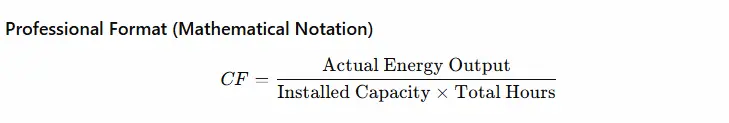

General Formula

CF = Actual Energy Output ÷ (Installed Capacity × Total Hours)

CF shows how well a solar system performs over time. It can be measured daily, monthly, or yearly. For most solar PV plants around the world, CF usually ranges between 15% and 25%.

Breakdown of Each Term:

• Actual Energy Generated (kWh): The total electricity produced by your solar plant in the given time.
• Rated Capacity (kW): The designed maximum power output your plant can produce under ideal conditions.
• Total Hours in the Period: The number of hours in the time frame you’re measuring — for a year, it’s 8,760 hours.

Worked Example:
Let’s calculate the CF for a 5 MW solar power plant that produced 8,000,000 kWh of electricity in one year.

So, the Capacity Factor = 18.3%

This means the 5 MW plant used around 18% of its total capacity over the year. It’s a good range for most solar systems under normal weather and grid conditions

Key Terms Explained

Understanding these key terms makes it easier to calculate and compare solar plant performance. Each one helps explain how energy production is measured and tracked in real conditions.

1. Rated (Nameplate) Capacity:

This is the total power your solar plant can produce under ideal sunlight and temperature. It’s the designed output, usually measured in kilowatts (kW) or megawatts (MW).

2. Hours in the Period:

This shows the total number of hours in a given time frame. For example, one year has 8,760 hours, which is used to find the annual capacity factor.

3. Actual Energy Generated:

This is the real amount of energy your solar plant produces during the period. It comes from the plant’s power meters and is measured in kilowatt-hours (kWh).

4. Difference Between CF, CUF, and PLF:

• CF (Capacity Factor): Measures how much energy a plant produces compared to its maximum possible output.
• CUF (Capacity Utilization Factor): Similar to CF but used more in solar energy to reflect practical operating conditions.

PLF (Plant Load Factor): Focuses on how efficiently the plant uses its installed capacity over time.

Step-by-Step Calculation

Calculating the Capacity Factor (CF) helps you understand how efficiently your solar plant works. Follow these simple steps to find it correctly.

Step 1: Find the rated capacity of your solar plant. It is the total power output your system can produce under ideal conditions, measured in kW or MW.

Step 2: Choose the time period you want to measure, such as one month or one year.

Step 3: Calculate the maximum possible energy output by multiplying the rated capacity by the total hours in that period.
Formula:
Maximum Energy = Rated Capacity × Total Hours

Step 4: Find the actual energy generated from your meter readings for that same period.

Step 5: Apply the formula and convert the result into a percentage to get the Capacity Factor.
Formula:
CF = (Actual Energy Generated ÷ Maximum Possible Energy) × 100

Example:
A solar plant has a rated capacity of 10 MW (10,000 kW) and produces 16,000,000 kWh in one year.
CF = 16,000,000 ÷ (10,000 × 8,760) = 0.183 or 18.3%

This means the plant used about 18.3% of its full potential over the year.

What is the Capacity Utilization Factor

The Capacity Utilization Factor (CUF) shows how effectively a solar power plant uses its installed capacity to generate electricity. It compares the actual energy produced to the energy that could have been made if the plant ran at full capacity for the same time. A higher CUF means the system is working efficiently and facing fewer losses from weather, maintenance, or grid issues. This value helps plant owners measure performance and plan improvements for better energy output.

Formula for Calculating CUF

The most widely accepted formula for CUF in a solar power plant is:

Where:

Actual Energy Generated (kWh): Total energy produced by the plant in the time frame.

Installed Capacity (kW): The plant’s nameplate capacity.

Total Hours: The number of hours in the chosen time period (e.g., 8760 hours in a year).

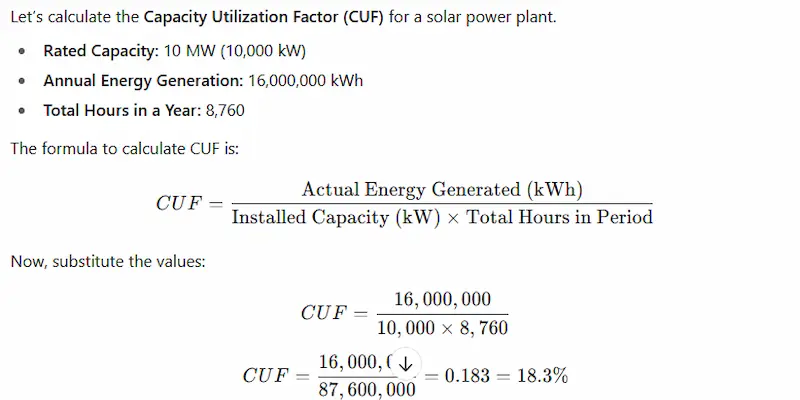

Example Calculation

The solar power plant achieved a CUF of 18.3%, which is within the normal global range for solar PV systems.

Key Differences Between CF and CUF

Here is a key difference comparison table between capacity factor (CF) and Capacity Utilization Factor (CUF)

Factors Affecting CUF

The Capacity Utilization Factor (CUF) of a solar power plant depends on several real-world conditions. These factors decide how much sunlight your panels get and how efficiently your system converts it into electricity. Some factors are linked to design, while others come from weather, maintenance, or grid issues. Knowing these helps you plan better and keep your plant performing at a higher level.

Main Factors Affecting CUF:

1. Solar irradiation and sunlight hours
2. Tilt angle and panel orientation
3. Shading from trees or nearby structures
4. Temperature and weather conditions
5. Quality and efficiency of solar panels
6. Type and performance of inverters
7. System losses in cables and connections
8. Regular maintenance and cleaning
9. Grid stability and curtailment issues
10. Use of fixed or tracking mounting systems

1. Solar Irradiation and Sunlight Hours

More sunlight means more power generation. The amount of solar energy your plant receives depends on location and weather. Areas with clear skies and longer days show higher CUF. Cloudy or rainy regions often produce less energy. Choosing a site with strong sunlight gives better long-term results.

Key Advantages:

• Higher sunlight hours increase energy output.
• Stable weather improves performance.
• Location planning ensures better CUF.

2. Tilt Angle and Panel Orientation

The tilt and direction of solar panels control how much sunlight they capture. Panels should face the sun directly for maximum efficiency. Wrong angles reduce energy output and lower CUF. Proper tilt settings depend on your latitude. Adjusting panels once or twice a year can also help.

Key Advantages:

• Correct tilt improves light absorption.
• Proper direction increases daily output.
• Seasonal adjustments maintain high CUF.

3. Shading from Trees or Nearby Structures

Even small shadows can cut down solar power. Shading blocks sunlight and reduces current flow in solar cells. It affects the performance of the entire string of panels. Always check for trees, poles, or nearby buildings before installation. Keeping panels clear from shade ensures steady production.

Key Advantages:

• No shading improves total energy generation.
• Better panel placement boosts CUF.
• Regular site checks prevent future issues.

4. Temperature and Weather Conditions

High temperatures can reduce panel efficiency. Solar panels work better in cool and sunny weather. Extreme heat, dust, or humidity can lower power output. Local climate plays a big role in overall CUF. Using panels with good temperature tolerance helps maintain stability.

Key Advantages:

• Cooler temperatures support higher efficiency.
• Weather awareness helps in site selection.
• Proper ventilation reduces heat effects.

5. Quality and Efficiency of Solar Panels

High-quality panels produce more energy and last longer. Cheap or low-grade panels lose performance quickly. Using efficient modules increases the CUF and return on investment. Always buy panels from trusted brands with solid warranties. Quality materials make a big difference in output.

Key Advantages:

• Better efficiency means more power.
• Reliable panels last longer.
• Fewer performance losses over time.

6. Type and Performance of Inverters

Inverters convert DC power to AC for use or export. A poor-quality inverter can waste energy and reduce CUF. Regular monitoring keeps them working efficiently. Modern inverters also track real-time data to spot faults early. Choosing the right inverter size and type improves performance.

Key Advantages:

• Good inverters reduce conversion losses.
• Real-time data helps quick fault detection.
• Longer lifespan with regular checks.

7. System Losses in Cables and Connections

Electricity can drop due to long or poor-quality cables. Every weak connection or hot joint causes power loss. Proper wiring and short runs reduce these losses. Regular inspection prevents overheating or failure. Good cable design helps the system run smoothly.

Key Advantages:

• Lower cable losses increase total output.
• Quality wiring ensures steady current flow.
• Fewer breakdowns and repair costs.

8. Regular Maintenance and Cleaning

Dirt, dust, and debris block sunlight from reaching the panels. Cleaning panels regularly keeps them efficient. Scheduled maintenance helps detect faults early. Well-maintained systems perform better and stay reliable. It’s one of the easiest ways to keep CUF high.

Key Advantages:

• Clean panels absorb more sunlight.
• Maintenance avoids costly breakdowns.
• Early fault detection saves energy.

9. Grid Stability and Curtailment Issues

An unstable grid can interrupt energy flow and lower CUF. Power cuts, voltage drops, or grid restrictions reduce usable output. Coordinating with the utility helps maintain smooth operation. Good grid management ensures consistent energy export. A reliable grid keeps CUF steady all year.

Key Advantages:

• Fewer power cuts improve generation.
• Stable grid supports steady performance.
• Better coordination reduces energy waste.

10. Use of Fixed or Tracking Mounting Systems

Fixed systems stay in one position, while trackers move with the sun. Tracking systems capture more sunlight and raise CUF. They are more useful in open and sunny regions. Though trackers cost more, they pay off in higher generation. Choosing the right system depends on site and budget.

Key Advantages:

• Trackers increase sunlight capture.
• Better output during morning and evening hours.
• Fixed systems need less maintenance.

Average CUF Values Around the World

Typical CUF values vary widely depending on location and design:

Desert regions (e.g., Middle East, Rajasthan, Nevada): 19–25%

Tropical regions (e.g., India, Southeast Asia): 17–22%

Temperate climates (e.g., Europe, North America): 14–18%

In regions with strong sunlight and advanced grid infrastructure, CUFs can exceed 25%, especially with solar tracking technology and hybrid energy systems.

Strategies to Improve CUF in Solar Power Plants

Improving the Capacity Utilization Factor (CUF) helps a solar plant produce more electricity from the same system. It depends on careful design, regular maintenance, and good daily management. Each strategy below explains simple ways to boost performance and reduce power loss. With these methods, your solar plant can stay efficient and give better results throughout the year.

1. System Design Improvements
2. Operational Enhancements
3. Grid and Policy Considerations
4. Use of Solar Tracking Systems
5. Regular Cleaning and Maintenance
6. Efficient Inverter Management
7. Reduce System Losses
8. Smart Monitoring and Data Analysis

1. System Design Improvements

Good design helps your solar plant perform at its best. Panels should be placed where they get maximum sunlight with minimum shading. The tilt and direction must match your site’s location. Use efficient panels and smart layouts to reduce space and energy loss. A strong design saves cost and boosts output.

Key Points:

• Choose high-efficiency solar panels.
• Set the right tilt and direction for your region.
• Avoid shading from nearby trees or buildings.

2. Operational Enhancements

Smooth operation keeps your plant active and productive. Regular performance checks help you catch issues early. Keep track of inverter data, temperature, and generation levels. Quick repairs prevent energy loss and downtime. A well-run plant stays efficient throughout the year.

Key Points:

• Monitor plant performance daily.
• Repair faults or breakdowns quickly.
• Train staff to follow safety and performance rules.

3. Grid and Policy Considerations

A strong grid and fair policies support higher CUF. Grid stability ensures smooth power flow without frequent cuts. Clear government rules and incentives help you plan better. Coordinating with local utilities prevents curtailment issues. Reliable connections keep your system working longer and better.

Key Points:

• Work with stable and well-managed grids.
• Follow local solar and energy policy updates.
• Manage curtailment and grid downtime carefully.

4. Use of Solar Tracking Systems

Solar trackers move panels to follow the sun’s path. This simple movement increases sunlight capture and power generation. It works best in open areas with good sunlight. Though trackers cost more, they give higher energy returns. They can raise CUF by several percentage points.

Key Points:

• Use single or dual-axis tracking systems.
• Ideal for large ground-mounted plants.
• Check tracker alignment regularly.

5. Regular Cleaning and Maintenance

Clean panels produce more power. Dust, bird droppings, and dirt reduce sunlight absorption. Create a cleaning schedule based on local conditions. Regular inspection keeps all parts in good condition. Proper maintenance also extends the system’s life.

Key Points:

• Wash panels gently with clean water.
• Remove debris or leaves regularly.
• Inspect cables and joints for damage.

6. Efficient Inverter Management

Inverters are key to converting solar energy into usable power. A faulty inverter can lower your output quickly. Use reliable brands and keep backups ready. Check inverter data for any drop in performance. Timely replacement or servicing helps maintain a high CUF.

Key Points:

• Use high-quality inverters with a good warranty.
• Monitor inverter performance through logs.
• Replace weak or faulty inverters quickly.

7. Reduce System Losses

Every small loss affects your CUF. Energy loss happens through wires, junctions, or long cable runs. Use thicker cables and quality connectors to cut losses. Keep wiring neat and short to maintain voltage levels. Less energy loss means better output and profit.

Key Points:

• Use short and high-quality cables.
• Check for loose or hot connections.
• Maintain proper earthing and wiring.

8. Smart Monitoring and Data Analysis

Smart monitoring tools help track real-time performance. They show faults early and save repair time. Data analysis helps find weak areas in the system. With IoT-based platforms, you can check your plant from anywhere. This helps in fast action and steady CUF improvement.

Key Points:

• Use digital monitoring or IoT systems.
• Analyze generation trends monthly.
• Fix performance drops quickly.

Common Mistakes to Avoid

Even a well-designed solar power plant can lose efficiency due to small mistakes. These errors may not seem big at first, but they can greatly reduce the Capacity Utilization Factor (CUF) over time. Knowing and avoiding them helps keep your system efficient, reliable, and long-lasting. For more performance tips, see how bifacial solar panels increase sunlight capture and help maintain a higher CUF in large-scale solar systems.

1. Poor Site Selection

Choosing a site without studying sunlight, shading, or soil conditions can limit energy generation. A wrong location means lower CUF and poor return on investment. Always check sunlight hours, nearby structures, and local weather before installing panels.

Avoid This By:

• Conducting a detailed site survey.
• Checking sunlight and shade patterns.
• Avoiding dusty or low-sunlight areas.

2. Incorrect Panel Orientation and Tilt

Panels that don’t face the right direction or have the wrong tilt angle lose a large part of their potential. Even a few degrees off can reduce sunlight capture. Regularly check and adjust tilt angles to match seasonal changes.

Avoid This By:

• Facing panels toward true south (in the Northern Hemisphere).
• Adjusting tilt based on latitude.
• Reviewing alignment every 6 months.

3. Ignoring Maintenance and Cleaning

Dust, dirt, and bird droppings can block sunlight and lower output. Neglecting regular cleaning and inspection leads to power loss. A small effort in maintenance can make a big difference in CUF.

Avoid This By:

• Cleaning panels every 2–4 weeks.
• Checking connections and fuses.
• Scheduling professional inspections twice a year.

4. Using Low-Quality Equipment

Cheap panels, inverters, or cables might save money upfront but cost more later. They degrade faster and reduce efficiency. Always use certified and tested components from trusted brands.

Avoid This By:

• Buying Tier-1 panels and branded inverters.
• Checking warranty terms and product ratings.
• Ensuring all parts meet international standards.

5. Poor Cable Management

Loose or undersized cables increase resistance and energy loss. Improper wiring can also cause overheating or short circuits. A well-planned electrical layout ensures safety and efficiency.

Avoid This By:

• Using the correct wire gauge.
• Securing all cable joints properly.
• Inspecting cables for damage or corrosion.

6. Ignoring Inverter Efficiency and Settings

Inverters are the heart of a solar system. Wrong settings or ignored alerts can lead to big energy losses. Regularly monitor inverter performance and update firmware if needed.

Avoid This By:

• Checking inverter logs weekly.
• Setting correct voltage and frequency levels.
• Choosing inverters with monitoring features.

7. Overlooking Monitoring and Data Analysis

Without real-time monitoring, small faults can go unnoticed. Tracking system performance helps identify issues early and maintain high CUF. A monitoring system makes it easy to compare daily and monthly trends.

Avoid This By:

• Installing smart monitoring software.
• Reviewing daily generation data.
• Setting alerts for sudden drops in output.

8. Not Accounting for Future Expansion or Upgrades

Many plants are designed only for current needs. Later, when more capacity or batteries are added, the system becomes unbalanced. Planning ensures smooth upgrades without major redesigns.

Avoid This By:

• Designing systems with expansion space.
• Using scalable inverters and switchgear.
• Consulting with engineers for upgrade plans.

CUF in Financial Modeling and Project Viability

For solar project developers and investors, CUF is more than a technical metric — it’s a financial cornerstone.

Revenue Forecasting: CUF directly determines how much energy can be sold.

Levelized Cost of Energy (LCOE): Higher CUF reduces LCOE, improving project profitability.

Risk Assessment: Overestimating CUF leads to unrealistic financial projections and investor dissatisfaction.

Bankability: Financiers rely heavily on CUF values to assess loan repayment capacity.

In short, CUF plays a central role in solar project finance, influencing everything from cash flow models to investor confidence.

Frequently asked questions

Here are frequently asked questions about how to calculate solar power plant capacity factor

Conclusion

Now you know how to calculate solar power plant capacity factor with simple steps. You learned what it means, how to find each value, and how to check your plant’s performance. This helps you understand how much energy your system really produces compared to its full potential.

Keep practicing the calculation with your own data to get a better idea of your plant’s efficiency. Once you feel confident, explore more ways to improve CUF and boost energy output. You can also check our guides on bifacial solar panels and solar trackers to learn how smart designs can raise your capacity factor even higher.

Previous Post

Advantages and Disadvantages of HJT Solar Panels

---

Next Post

Difference Between N-Type and P-Type Semiconductors | Which Is Better for Solar Panels?

Latest Posts

Net Meter vs Gross Meter: A Simple Guide to Solar Billing Systems

---

26 Oct 2025

6

Bifacial Solar Panels: A Complete Solar Energy Guide

---

21 Oct 2025

8

Advantages and Disadvantages of Flexible Solar Panels: What You Should Know Before Buying

---

20 Oct 2025

5

Please Write Your Comments

Comments (0)

Leave your comment.

Add Comment +

INSTRUCTIONS:

• Be Respectful
• Stay Relevant
• Stay Positive
• True Feedback
• Encourage Discussion
• Avoid Spamming
• No Fake News
• Don't Copy-Paste
• No Personal Attacks
